Scaffolding

INTRODUCE：

1. Material : Q235, Q345 steel

2. Surface treatment: painted, pre-galvanized, hot dipped galvabized

3. Dimention: 1219*1700mm, 1219*1954mm, 1219*1930mm, 1219*914mm

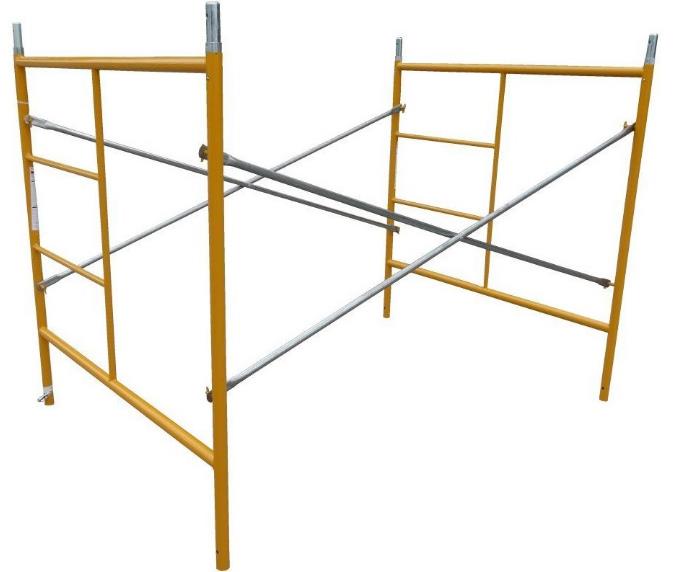

4. Type: A-frame, H-frame

5. Specification:
main pipe: 42*2.0/1.8/2.2mm,
inner pipe: 42*2.0/2.2/1.8mm or 25*1.5mm etc

6. Main component: cross brace, joint pin, jack base, cat walk

7. Cross brace: 21.3*1.4mm etc as request length

8. Joint pin: 35*1.5*225/210mm etc

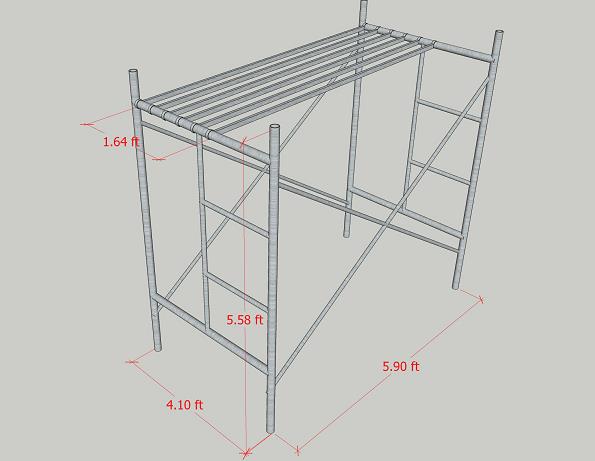

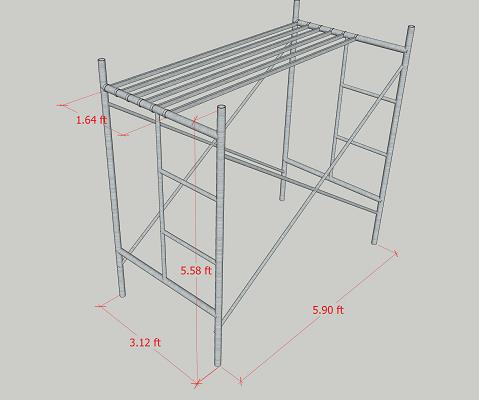

9. Cat walk: 420*1829mm, 420*1800mm etc.

10. OEM is available
